Technical Features:

1. We have adopted a more stable blade shaft.

2. A large number of steel ladle copper structural components are used, which can better suppress and absorb resonance.

3. Dynamic balance design can eliminate the interference of the singing arm from the level of the turntable.

4. The detachable head cover design makes it easier to install the cartridge.

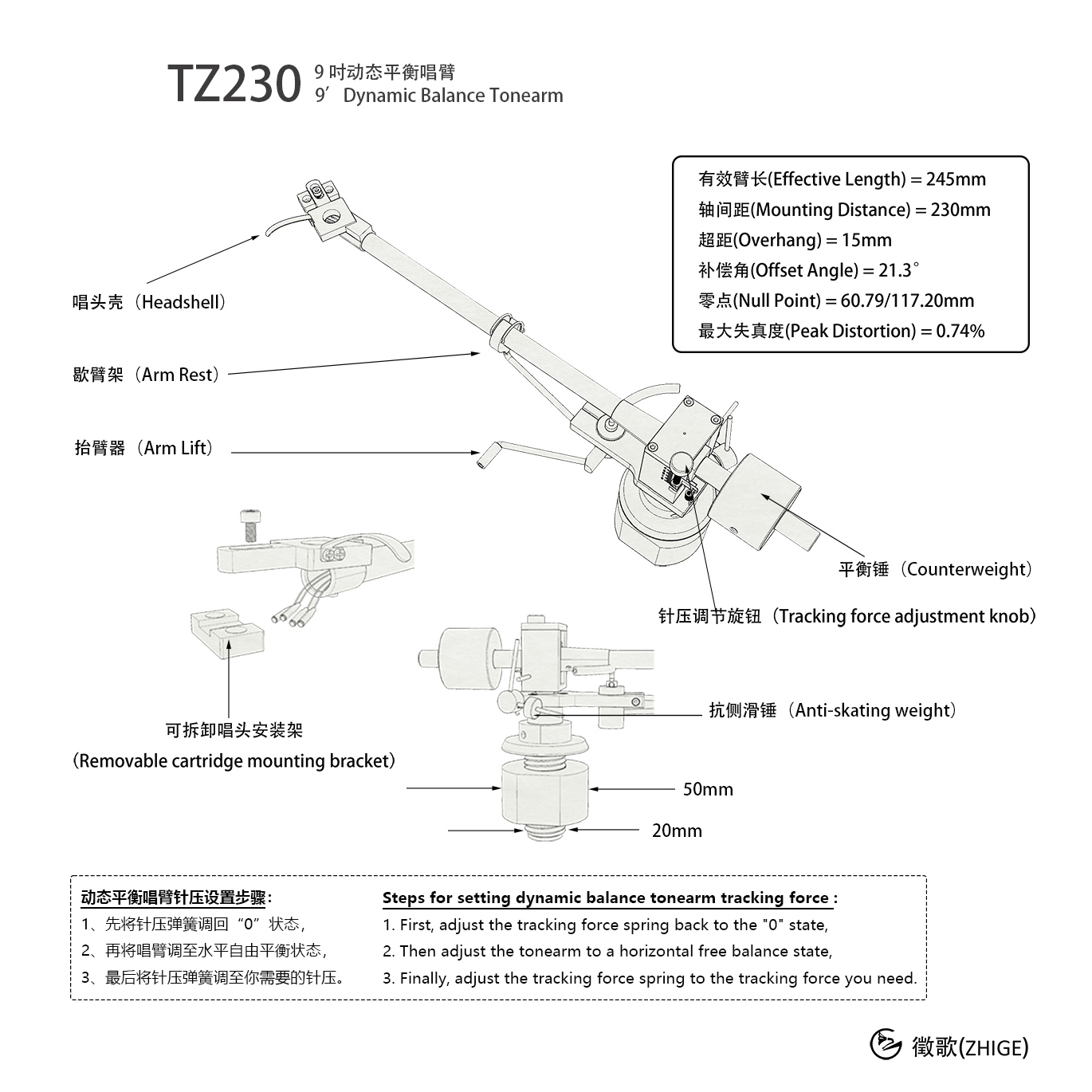

Model TZ230
Type 9’Dynamic Balance Tonearm
EffectiveLength 245mm
MountingDistance 230mm
Overhang 15mm
OffsetAngle 21.3°
NullPoint 60.79/117.20mm
PeakDistortion 0.74%
Effective mass 14.45g(Including Headband)
Applicable Cartridge Weight 5-20g
Output Terminal DIN 5P
Accessories DIN5P phono cable、ruler、glove、specification
Weight 1Kg
Including Packaging Weight 2.6Kg
